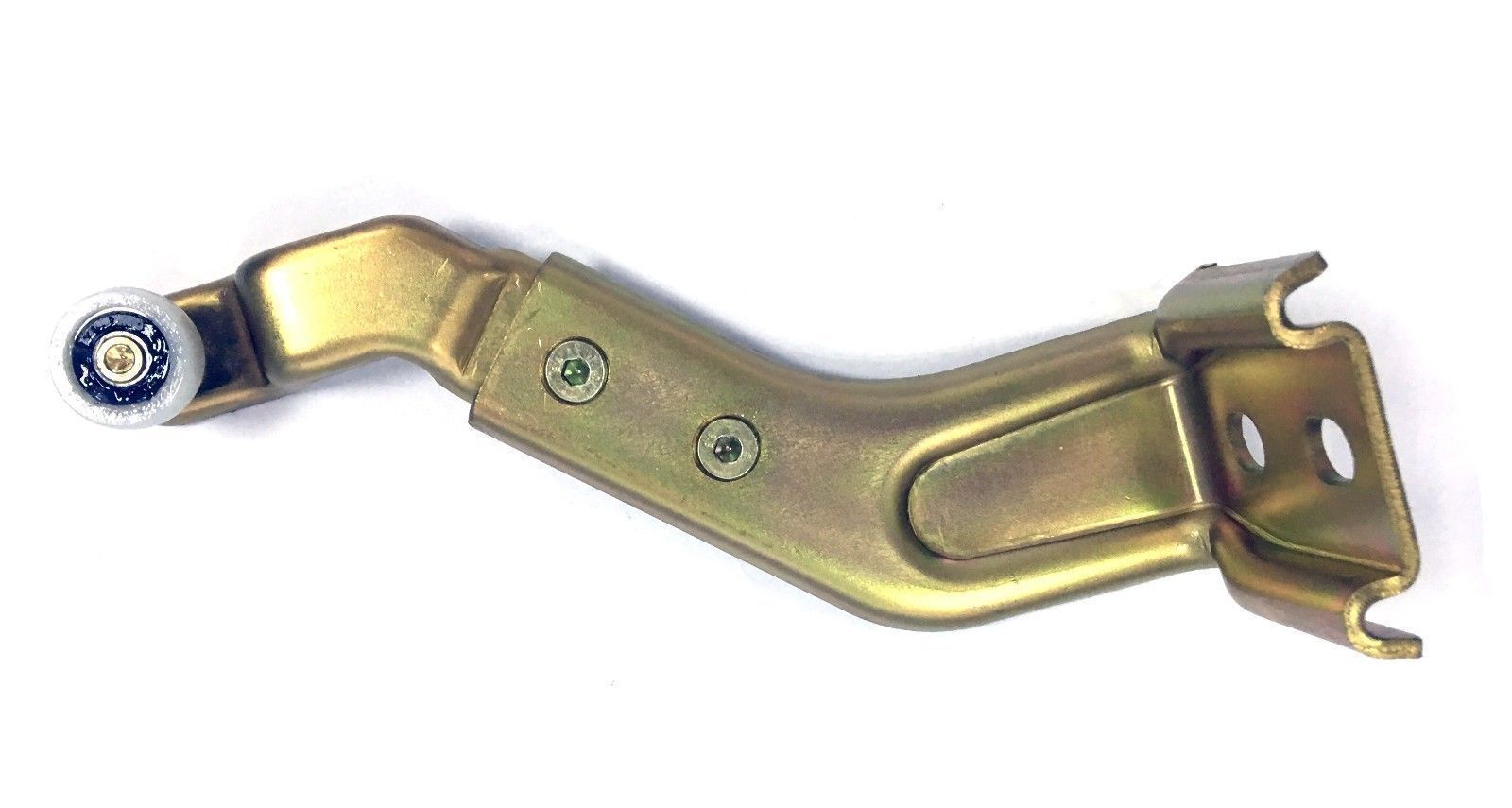

Sliding door roller, right upper; first generation Sprinter

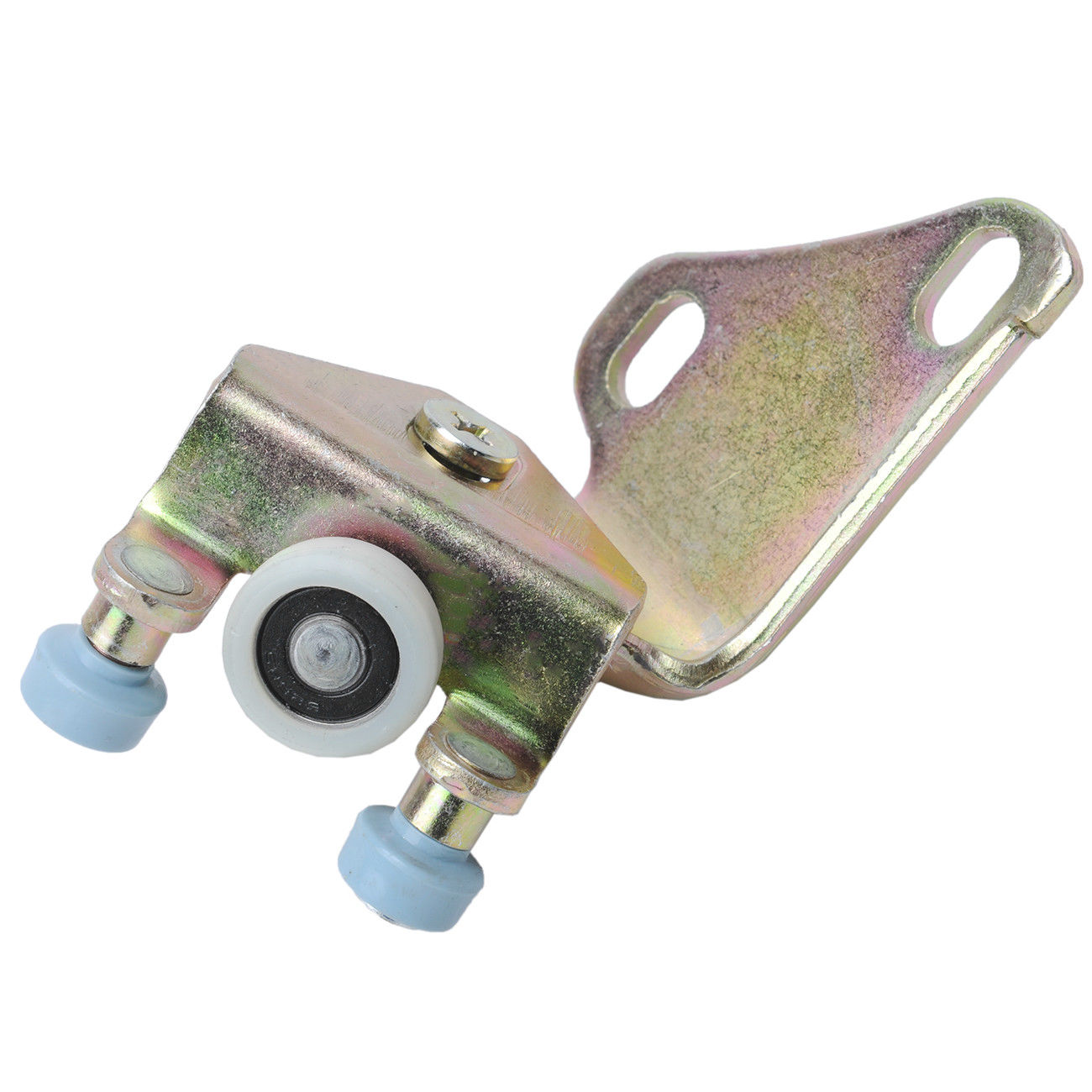

Sliding door roller, right lower; first generation Sprinter

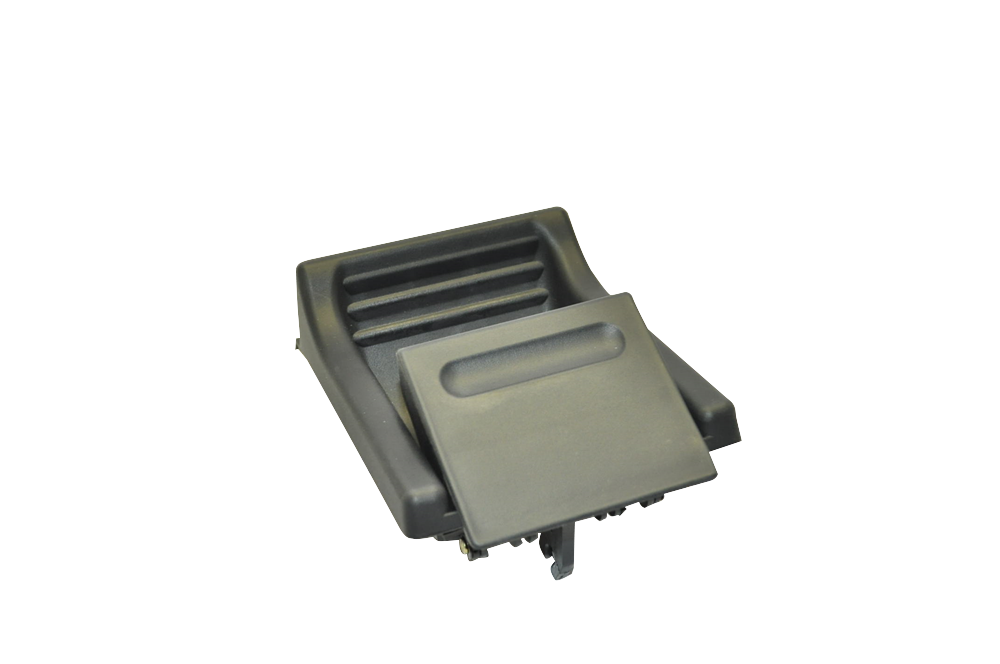

Interior Door Handle, RH side, sliding door

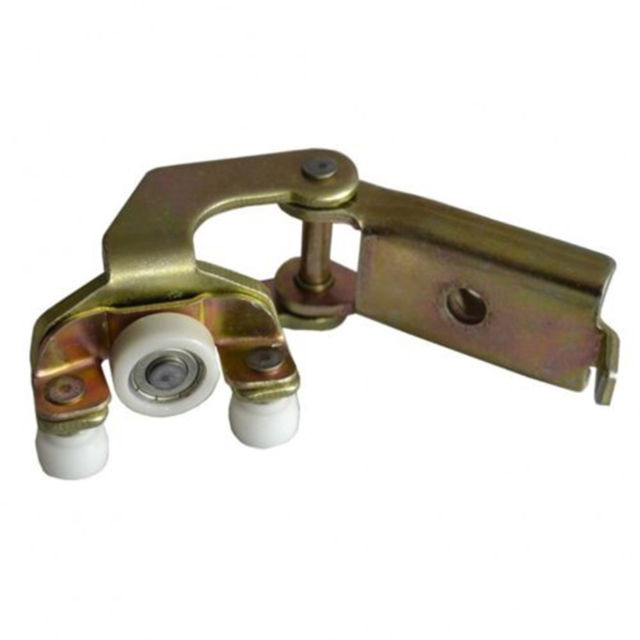

Sliding door roller, right middle; first generation Sprinter

1995-2006 Mercedes Sprinter

2003-2006 Dodge Sprinter

2002-2006 Freightliner Sprinter

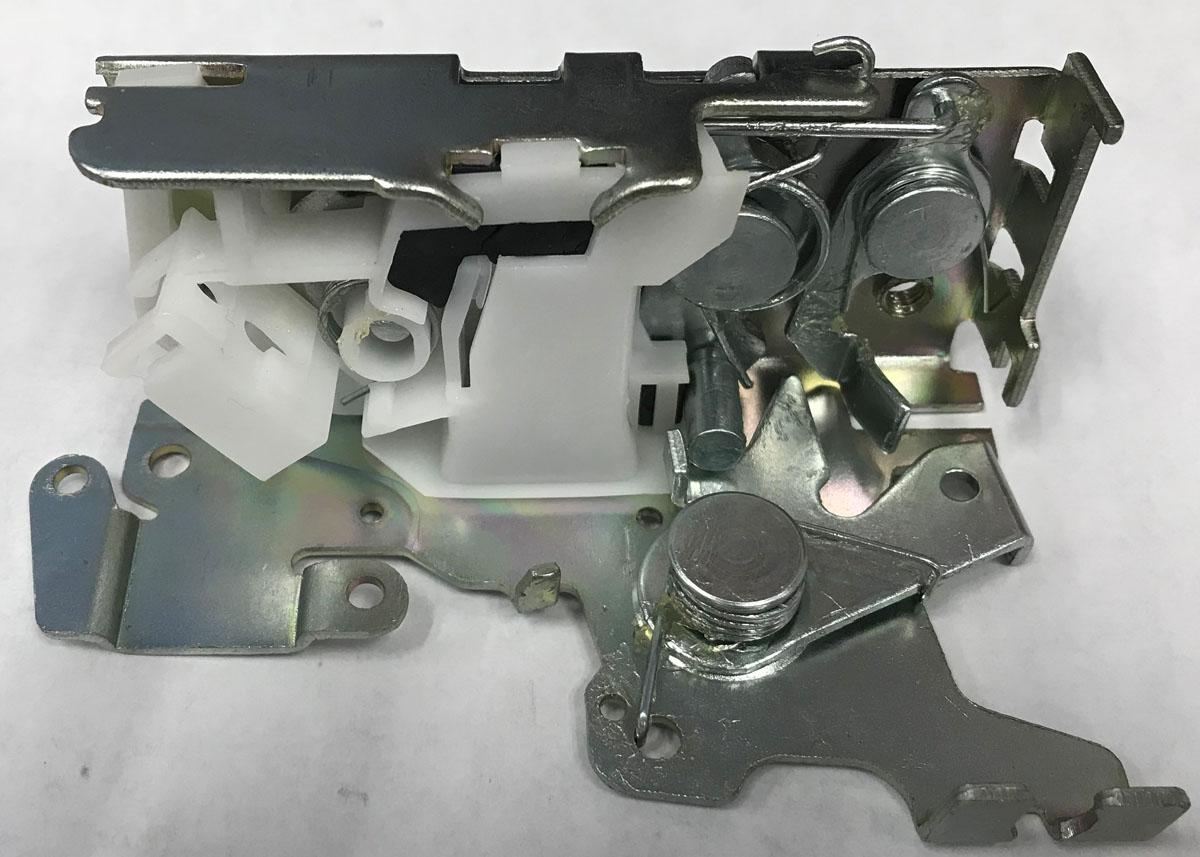

RIGHT SIDE sliding door lock assembly. First generation Sprinter 901 series.

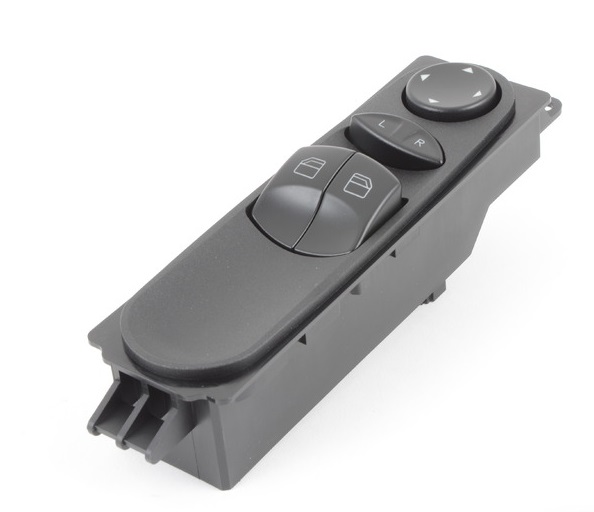

Window Adjuster / Outside mirror control panel

please note
US patent US 11,938,908 B2

This window regulator repair kit will fix and correct common problems on these fine vehicles:
Mercedes Benz Sprinter (1995-2002)
Dodge Sprinter 2500, 3500 (2002-2006)
Freightliner Sprinter 2500, 3500 (2002-2006)
Our USA-based team of engineers designed, and a manufacturer in Estonia produced a replacement brass slide for your window regulator. You will be replacing the broken PLASTIC part with a BRASS one.

You will not need to remove the entire window regulator from the door to do the repairs .The mounting rivet that once held PLASTIC slide block to the arm has to be carefully removed by using Dremel tool. ( please put on some protective eye-wear .) Remove the rivet out of the arm once you ground the cap of the rivet ( short part of the rivet) -

Now you can Install the specialty screw that we provided in to the hole of the sliding block, install the sliding block into the slide at the bottom of the window glass, insert threaded part through the hole in the arm of the regulator and secure it with the nut.
We provide locking type nut to keep the nut in place. Please try fitting the nut onto the bolt first , so that you understand the mechanisms function before assembling the kit .
You can apply one drop of your favorite assembly oil (C)
US patent US 11,938,908 B2
